TerraPen — Open Source A2 CoreXY Pen Plotters

Blending Art and Technology

a tool for computational artists that is easy to set up and use out of the box

Example

terraPen’s mission is to make large format artwork easy to produce from a reliable quality product, supported through an open source community.

the terraPen A2X

Our current-generation A2 pen plotter: a fast, precise CoreXY machine, hand-built to order and open source down to the design files and firmware.

An A2 plotter designed and built in the UK by pen plotter artists, for pen plotter artists. Rigid SLS-printed nylon parts give smoother motion and easier servicing, a stepper-driven pen lift takes pens up to 16mm, and FluidNC firmware lets you run it from any browser, from our free terraForge app, or from terraDial at the bench.

We've listened and worked closely with the community to build a suite of tools that develop your creative practice, straight out of the box.

Shop the A2X

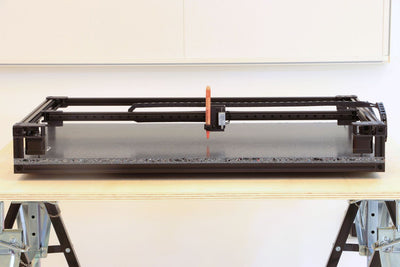

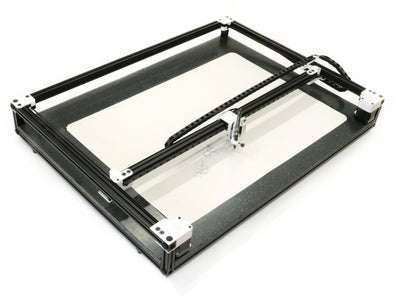

terraPen A2X pen plotter from the front, with black frame, white SLS nylon parts and metal bed

For the makers

companies

Elevate your creative company's output and unlock a world of limitless design possibilities with the cutting-edge terraPen plotter—a game-changing tool that merges technology and artistry for unparalleled innovation.

Artists

Unleash your artistic vision with the precision and versatility of the terraPen plotter— blend technology and artistry to bring your digital designs to life with unparalleled accuracy and finesse, ready for you to add your artistic flair.

universities

The precision and versatility of the terraPen plotter is a high-precision tool that seamlessly integrates with your setup, enabling students and researchers to bring digital designs to life with exceptional accuracy and ease.

Example

KEY FEATURES

Motion system

Core XY

Large format A2 flatbed driven by a CoreXY motion system with linear rails. Providing reliable, accurate and fast plotting.

terraPen A2X tool head and X motor seen from the left

terraDial controller on its stand showing the radial menu

Convenient

Wireless Control

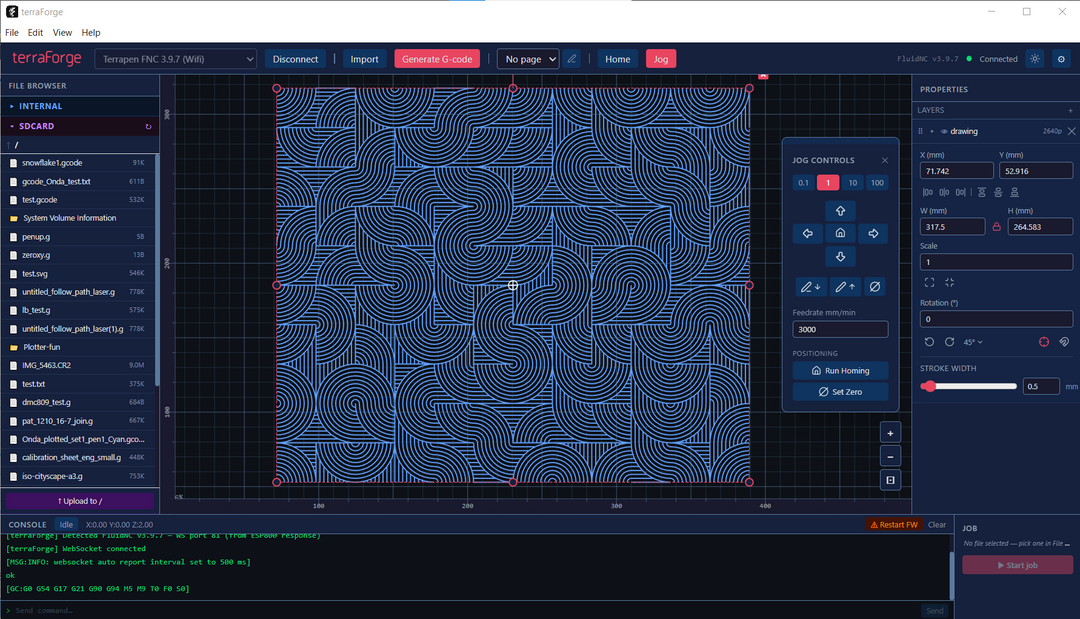

terraPen runs FluidNC on our own ESP32 controller. Upload, home and start your plots from any browser on your network, or send them straight from terraForge.

Jobs run from the onboard SD card, so you can disconnect and the plot carries on. Add terraDial for hands-on control at the bench: jog, run jobs and watch progress with no laptop or phone.

Pen lift

Stepper Z axis

A stepper-driven pen lift gives repeatable, adjustable pen height and pressure, and takes pens up to 16mm in diameter.

Close-up of the terraPen A2X tool head with stepper pen lift, holding a pen

community driven

Open source

Built on open-source hardware and software. The mechanical designs, our Emerald Dingo controller, the FluidNC configs and terraForge are all available to build on, improve and modify.
